3D visualization in dynamo¶

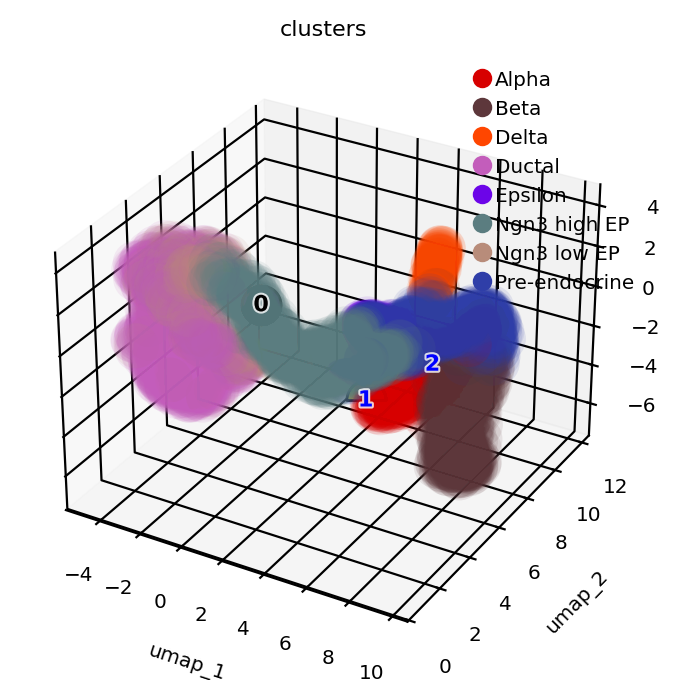

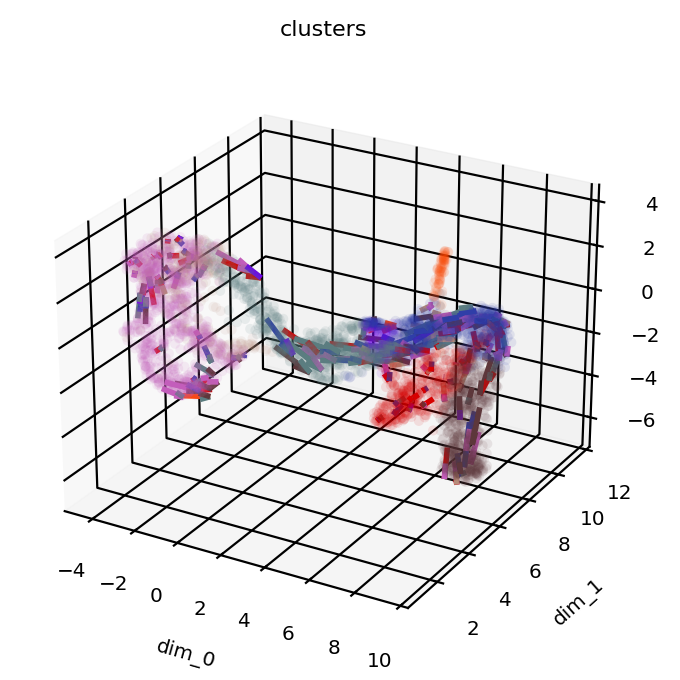

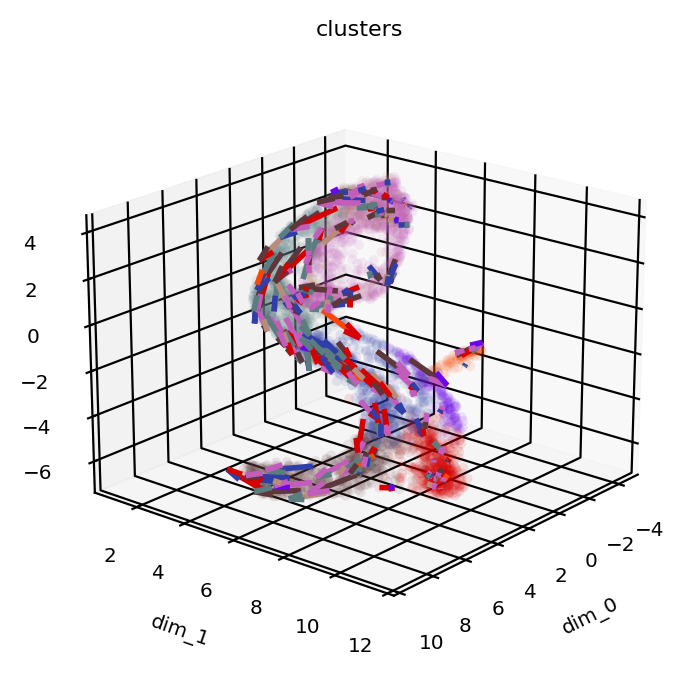

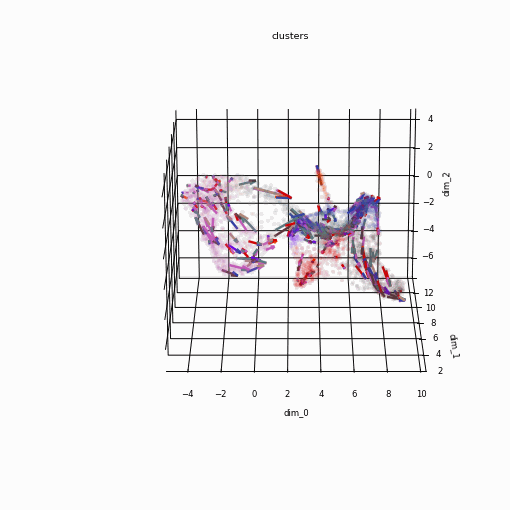

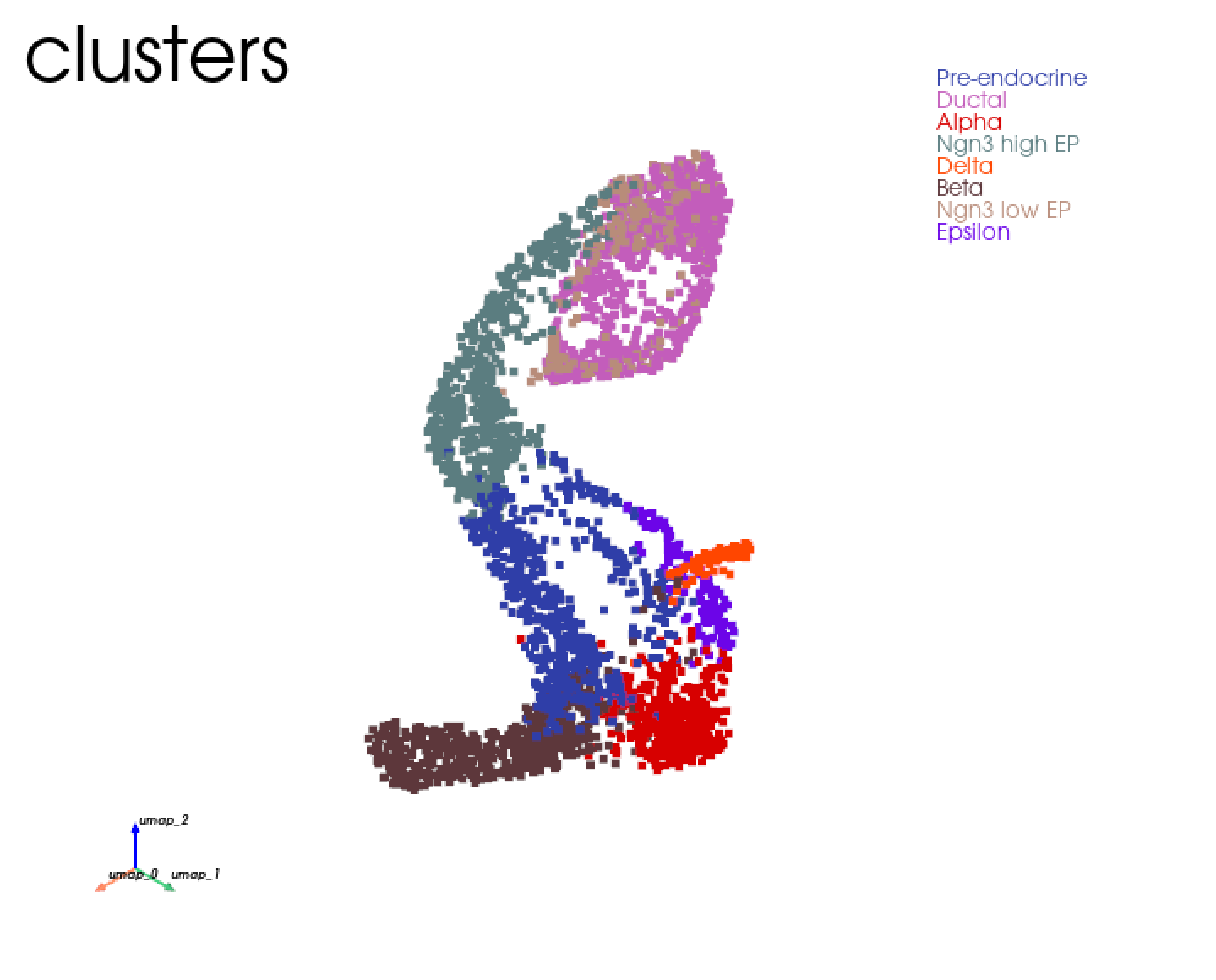

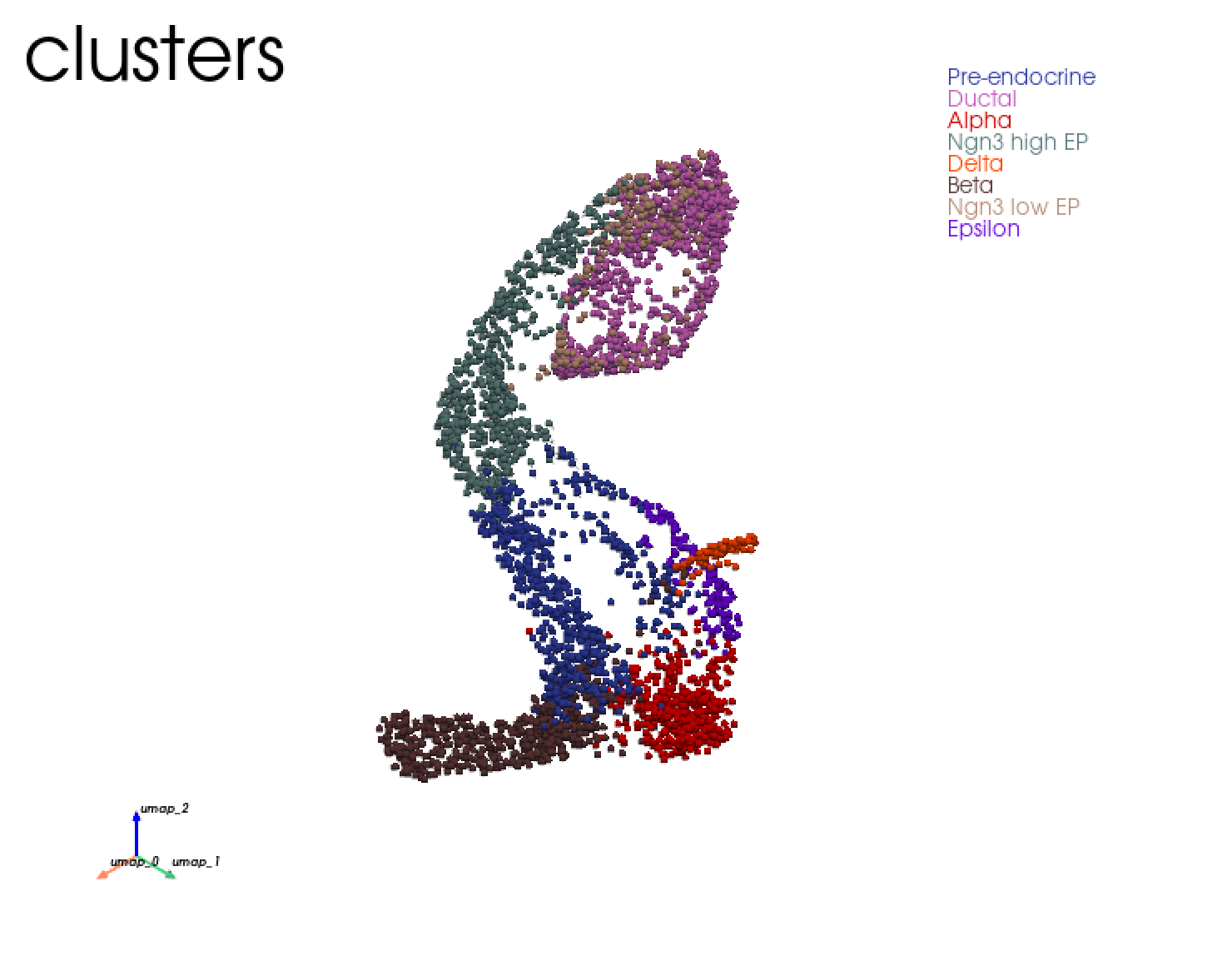

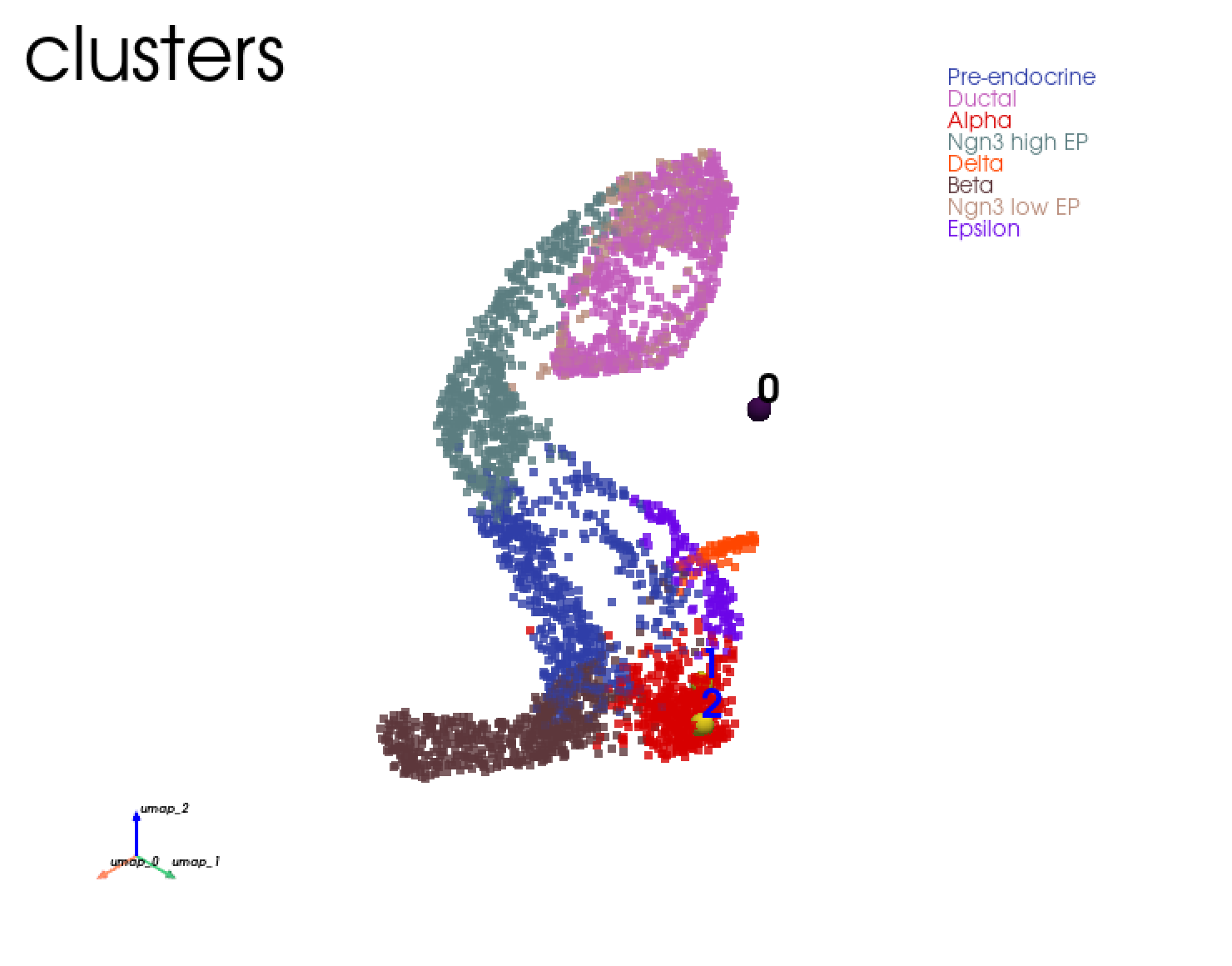

dynamo v1.4 ships a full suite of 3D visualizations (matplotlib, Plotly, PyVista). This tutorial renders them on the pancreatic endocrinogenesis dataset (Ductal → Ngn3 → Pre-endocrine → endocrine), so the 3D velocity arrows can be checked against the 2D flow.
Rendering. Each 3D plot is shown twice: a static image (so it displays on GitHub, which strips interactive JavaScript) followed by the interactive Plotly / PyVista version (rotate & zoom — it renders on nbviewer / readthedocs and in JupyterLab).
import os
os.environ['PYVISTA_OFF_SCREEN'] = 'true'
import warnings; warnings.filterwarnings('ignore')
import io, base64
from IPython.display import HTML, Image, display
import matplotlib.pyplot as plt
import imageio.v2 as imageio
import pyvista as pv
pv.OFF_SCREEN = True
import dynamo as dyn
dyn.configuration.set_figure_params('dynamo', background='white')
def _png(img, w, h):
plt.close('all') # drop the empty matplotlib figure dynamo's pv path leaves open
fig = plt.figure(figsize=(w / 100, h / 100))
plt.imshow(img); plt.axis('off'); fig.tight_layout(pad=0); plt.show()
def show_pv_both(obj, w=720, h=560):
"""Static screenshot (for GitHub) + interactive scene (for nbviewer / readthedocs)."""
pl = obj[0] if isinstance(obj, (list, tuple)) else obj
pl.window_size = [w, h]
_png(pl.screenshot(return_img=True), w, h)
pl.export_html('_pv.html'); html = open('_pv.html').read(); os.remove('_pv.html')
b64 = base64.b64encode(html.encode()).decode()
display(HTML(f'<iframe src="data:text/html;base64,{b64}" width="{w}" height="{h}" frameborder="0"></iframe>'))
def show_plotly(fig):
display(HTML(fig.to_html(include_plotlyjs='cdn', full_html=False)))
1. Preprocess and estimate velocity¶
adata = dyn.sample_data.pancreatic_endocrinogenesis()
celltype_key = 'clusters'
dyn.pp.Preprocessor().preprocess_adata(adata, recipe='monocle')
dyn.tl.dynamics(adata, model='stochastic', cores=4)
adata
|-----> Downloading data to ./data/endocrinogenesis_day15.h5ad
|-----> File ./data/endocrinogenesis_day15.h5ad already exists.
|-----> Running monocle preprocessing pipeline...
|-----------> filtered out 0 outlier cells
|-----------> filtered out 21736 outlier genes
|-----> PCA dimension reduction
|-----> <insert> X_pca to obsm in AnnData Object.
|-----> [Preprocessor-monocle] completed [3.7344s]
╭─ SUMMARY: Preprocessor.preprocess_adata ───────────────────────────╮
│ Duration: 3.7363s │
│ Shape: 3,696 x 27,998 (Unchanged) │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● OBS │ ✚ Size_Factor (float) │
│ │ ✚ initial_cell_size (float) │
│ │ ✚ initial_spliced_cell_size (float) │
│ │ ✚ initial_unspliced_cell_size (float) │
│ │ ✚ nCounts (float) │
│ │ ✚ nGenes (int) │
│ │ ✚ ntr (float) │
│ │ ✚ pMito (float) │
│ │ ✚ pass_basic_filter (bool) │
│ │ ✚ spliced_Size_Factor (float) │
│ │ ✚ unspliced_Size_Factor (float) │
│ │
│ ● VAR │ ✚ frac (float) │
│ │ ✚ log_cv (float) │
│ │ ✚ log_m (float) │
│ │ ✚ nCells (int) │
│ │ ✚ nCounts (float) │
│ │ ✚ ntr (float) │
│ │ ✚ pass_basic_filter (bool) │
│ │ ✚ score (float) │
│ │ ✚ use_for_pca (bool) │
│ │
│ ● UNS │ ✚ PCs │
│ │ ✚ explained_variance_ratio_ │
│ │ ✚ feature_selection │
│ │ ✚ pca_mean │
│ │ ✚ pp │
│ │ ✚ velocyto_SVR │
│ │
│ ● LAYERS │ ✚ X_spliced (sparse matrix, 3696x27998) │
│ │ ✚ X_unspliced (sparse matrix, 3696x27998) │
│ │
╰────────────────────────────────────────────────────────────────────╯
|-----> dynamics_del_2nd_moments_key is None. Using default value from DynamoAdataConfig: dynamics_del_2nd_moments_key=False
|-----------> removing existing M layers:[]...
|-----------> making adata smooth...
|-----> calculating first/second moments...
|-----> [moments calculation] completed [24.4173s]
╭─ SUMMARY: dynamics ────────────────────────────────────────────────╮
│ Duration: 30.5001s │
│ Shape: 3,696 x 27,998 (Unchanged) │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● VAR │ ✚ use_for_dynamics (bool) │
│ │
│ ● UNS │ ✚ dynamics │
│ │ ✚ vel_params_names │
│ │
│ ● OBSP │ ✚ moments_con (sparse matrix, 3696x3696) │
│ │
│ ● LAYERS │ ✚ M_s (sparse matrix, 3696x27998) │
│ │ ✚ M_ss (sparse matrix, 3696x27998) │
│ │ ✚ M_u (sparse matrix, 3696x27998) │
│ │ ✚ M_us (sparse matrix, 3696x27998) │
│ │ ✚ M_uu (sparse matrix, 3696x27998) │
│ │ ✚ velocity_S (sparse matrix, 3696x27998) │
│ │
╰────────────────────────────────────────────────────────────────────╯
AnnData object with n_obs × n_vars = 3696 × 27998
obs: 'clusters_coarse', 'clusters', 'S_score', 'G2M_score', 'nGenes', 'nCounts', 'pMito', 'pass_basic_filter', 'Size_Factor', 'initial_cell_size', 'spliced_Size_Factor', 'initial_spliced_cell_size', 'unspliced_Size_Factor', 'initial_unspliced_cell_size', 'ntr'
var: 'highly_variable_genes', 'nCells', 'nCounts', 'pass_basic_filter', 'log_m', 'log_cv', 'score', 'frac', 'use_for_pca', 'ntr', 'use_for_dynamics'
uns: 'clusters_coarse_colors', 'clusters_colors', 'day_colors', 'neighbors', 'pca', 'pp', 'velocyto_SVR', 'feature_selection', 'PCs', 'explained_variance_ratio_', 'pca_mean', 'history_log', 'vel_params_names', 'dynamics'
obsm: 'X_pca', 'X_umap'
varm: 'vel_params'
layers: 'spliced', 'unspliced', 'X_spliced', 'X_unspliced', 'M_u', 'M_uu', 'M_s', 'M_us', 'M_ss', 'velocity_S'
obsp: 'distances', 'connectivities', 'moments_con'
2. 2D reference flow¶

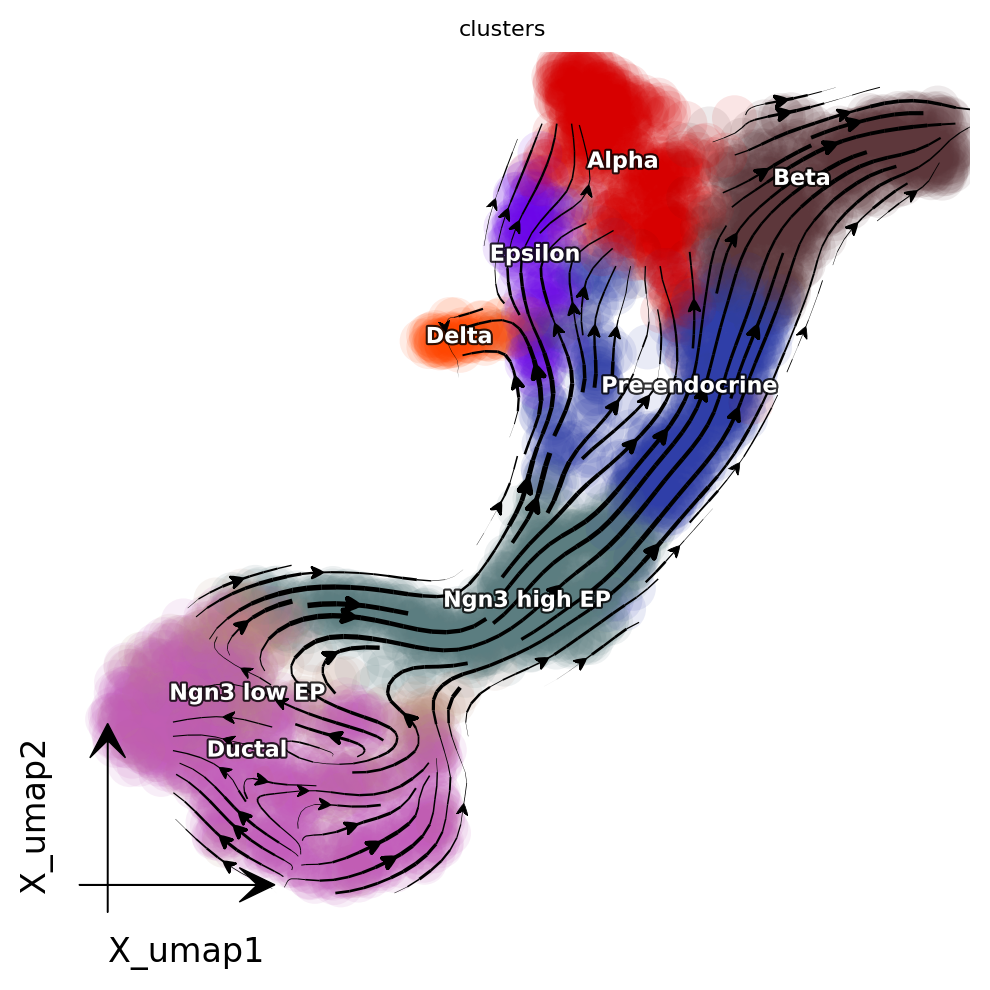

The 2D velocity streamlines run from Ductal/Ngn3 progenitors to the endocrine fates — the ground truth we compare the 3D arrows against.
dyn.tl.reduceDimension(adata, basis='umap', n_components=2, enforce=True)
dyn.tl.cell_velocities(adata, basis='umap')
dyn.pl.streamline_plot(adata, color=[celltype_key], basis='umap', figsize=(5, 5))
|-----> retrieve data for non-linear dimension reduction...
|-----> [UMAP] using X_umap with n_pca_components = 30
|-----> <insert> X_umap to obsm in AnnData Object.
|-----> [UMAP] completed [20.6363s]
╭─ SUMMARY: reduceDimension ─────────────────────────────────────────╮
│ Duration: 20.6379s │
│ Shape: 3,696 x 27,998 (Unchanged) │
│ │
│ CHANGES DETECTED │
│ ──────────────── │
│ ● UNS │ ✚ umap_fit │
│ │
╰────────────────────────────────────────────────────────────────────╯
